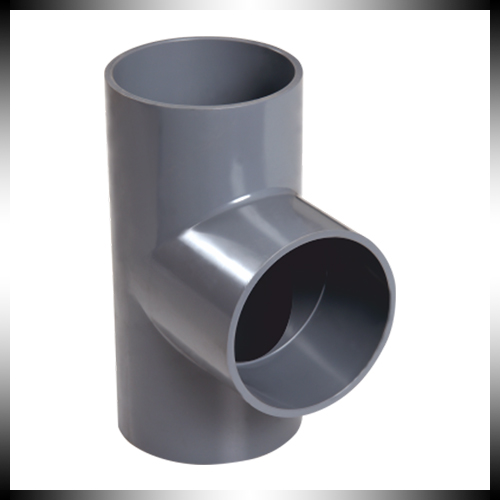

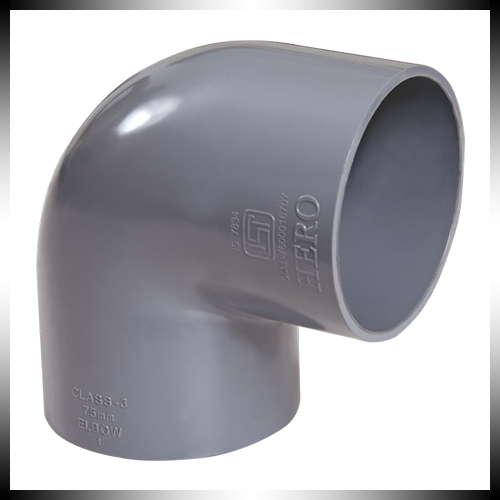

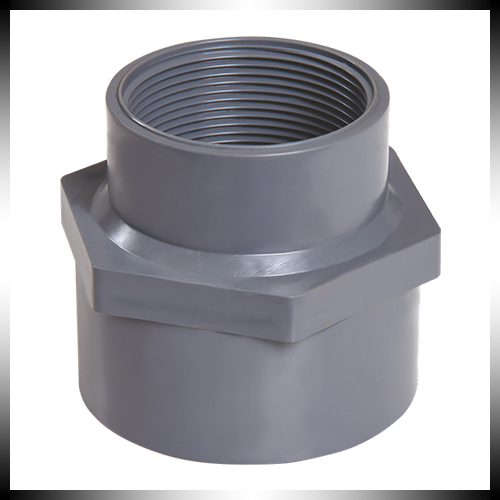

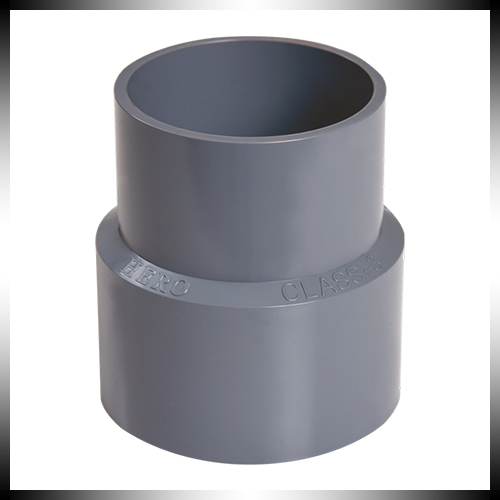

agriculture pipes and fittings

agriculture pipes and fittings
  • Pipe Standards:As per IS 4985 - 2000
  • Pressure Ratings:Class 1, Class 2, Class 3, Class5
  • Fitting Standards:As per IS 7834 - 1987 : For ISI Marked Fittings
  • Material:PVC Compound
  • Colour:Ligth Gray Colour
  • Standard Length:6 Meters Length
  • Range of Pipe40mm to 200mm
  • Range of Fitting40mm to 110mm
  • Solvent CementHeavy Duty

Techinical specification

Nominal Outside Diameter (Nominal Size)

Mean Outside diameter

Outside diameter at Any Point

Class 1 0.25 Mpa 2.5 Kg/cm2

Class 2 0.40 Mpa 4.0 Kg / cm2

Class 3 0.60 Mpa 6.O Kg/cm2

Class 5 1.00 Mpa 10.0 Kg/cm2

Min Max Min Max Min Max Min Max Min Max Min Max
40 40.0 40.3 39.5 40.5 - - - - 1.4 1.8 2.2 2.7
50 50.0 50.3 49.4 50.6 - - - - 1.7 2.1 2.8 3.3
63 63.0 63.3 62.2 63.8 - - 1.5 1.9 2.2 2.7 3.5 4.1
75 75.0 75.3 74.1 75.9 - - 1.8 2.2 2.6 3.1 4.2 4.9
90 90.0 90.3 88.9 91.1 1.3 1.7 2.1 2.6 3.1 3.7 5.0 5.7
110 110.0 110.4 108.6 111.4 1.6 2.0 2.5 3.0 3.7 4.3 6.1 7.1
140 140.0 140.5 138.3 141.7 2.0 2.4 3.2 3.8 4.8 5.5 7.7 8.9
160 160.0 160.5 158.0 162.0 2.3 2.8 3.7 4.3 5.4 6.2 8.8 10.2
180 180.0 180.6 177.8 182.2 2.6 3.1 4.2 4.9 6.1 7.1 9.9 11.4
200 200.0 200.6 197.6 202.4 2.9 3.4 4.6 5.3 6.8 7.9 11.0 12.7
