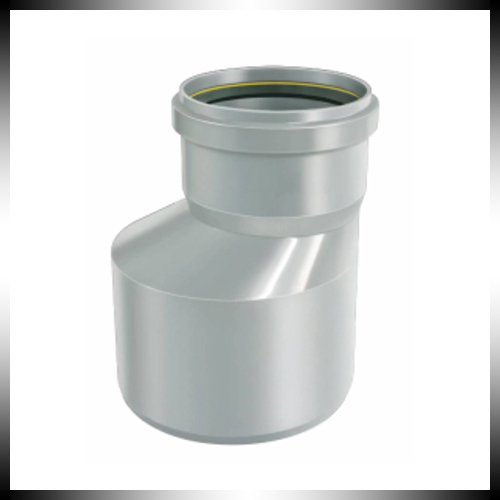

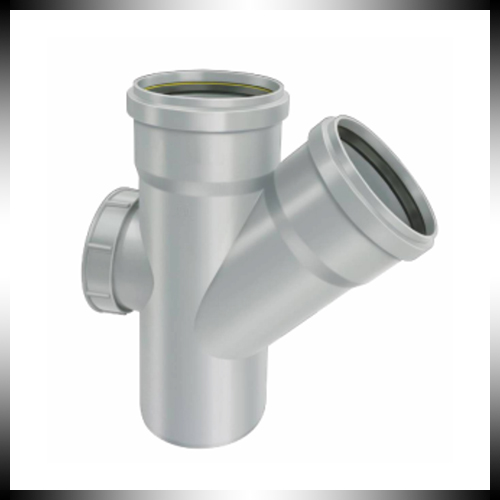

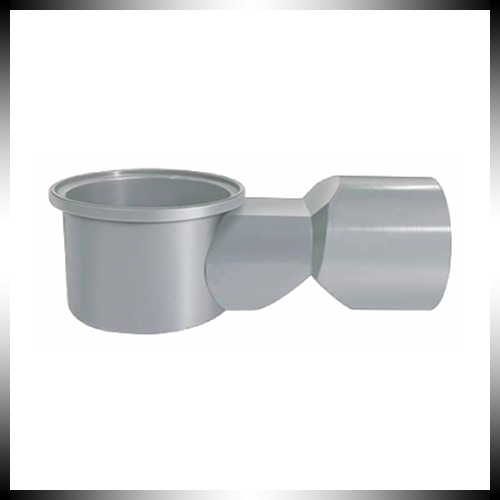

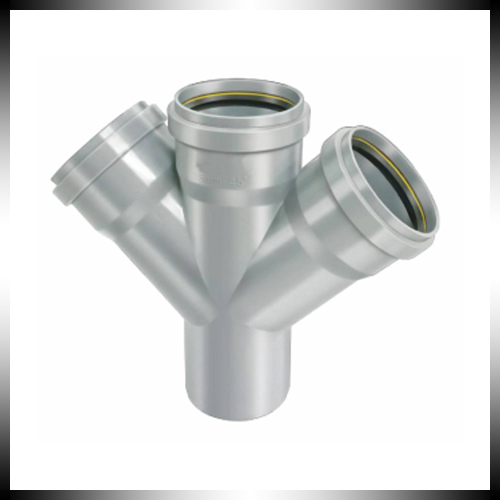

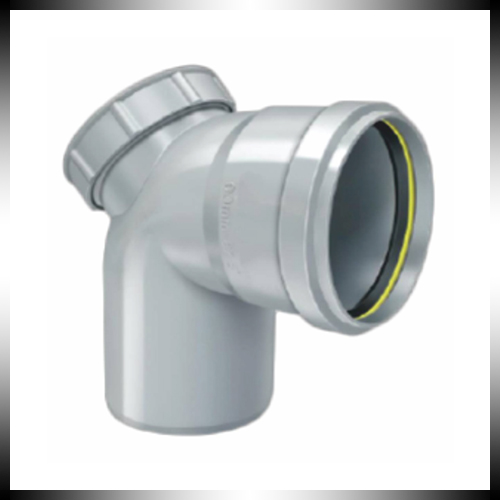

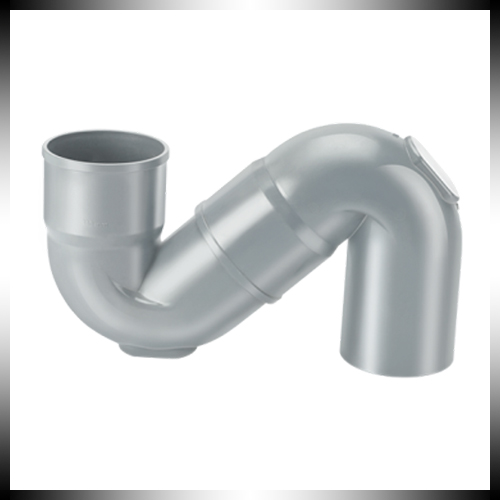

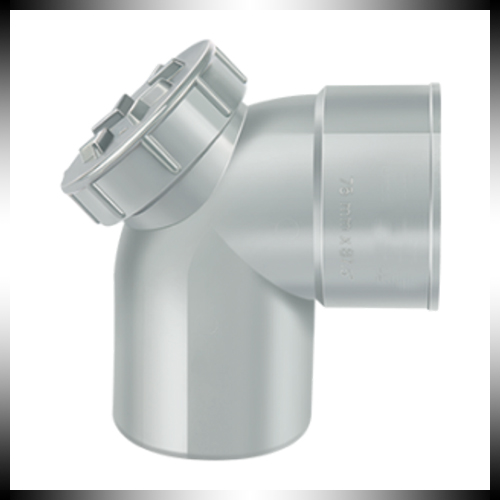

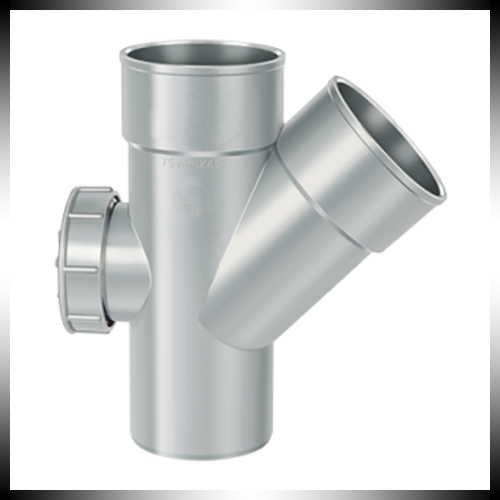

SWR Pipes and Fittings

SWR Pipes and Fittings
  • Pipe Standards:As per IS 13592
  • Fitting Standards:As per IS 14735 - 1999
  • Material:PVC Compound
  • Colour:Light Gray Colour
  • Standard Length:3 Meters Length
  • Range of Pipe:75mm, 110mm
  • Range of Fitting:75mm, 110mm

Techinical specification

Dimensions of SWR Pipes

Nonimal Outside Diameter DN

Mean Outside Diameter of Pipe (MM)

Outside diameter at Any Point

Wall Thickness Type A (MM)

Wall Thickness Type B (MM)

MM Min Max Min Max Min Max Min Max
75 75.0 75.3 74.1 75.9 1.8 2.2 3.2 3.8
90 90.0 90.3 88.9 91.2 1.9 2.3 3.2 3.8
110 110.0 110.4 108.6 111.4 2.2 2.7 3.2 3.8
160 160.0 160.5 158.0 162.0 3.2 3.8 4.0 4.6

Maximum Wall Thickness Socket in Pipes

Nonimal Outside Diameter DN

S2, Min

S3, Min

MM

MM

MM Type A Type B Type A Type B
75 1.6 2.9 1.0 2.4
90 1.7 2.9 1.1 2.4
110 2.0 2.9 1.2 2.4
160 2.9 3.6 1.8 3.0

Dimensions of Grooved Socket

Nonimal Outside Diameter DN

Inside Diameter of socket D1 (mm)

Inside Diameter of Beading, D2 (mm)

Length of Beading and Neck (mm)

Neck of Socket (mm)

Length Beyond Beading (mm)

A B C
MM Min Max Min Max Max Min Min
75 75.3 76.2 84.5 85.5 20 5 25
90 90.3 91.2 99.5 100.5 23 5 28
110 110.4 111.3 120.3 121.3 26 6 32
160 160.5 161.5 173.8 175.0 32 9 42
